PrimaLuna EVO 400 Power Caratteristiche Tecniche Nuovo amplificatore finale Primaluna EVO 400 Power Amplifier Potenza in ultralineare: in stereo 70 watt x 2 (EL34), in mono 140 watt (EL34) (8 Ohm, 1% THD)Potenza in triodo: in stereo 38 watt x 2 (EL34), in mono 82 watt (EL34) (8 Ohm, 1% THD)Ingressi: 1 x Stereo RCA + 1 x stereo bilanciato XLRUscite: 4 & 8 & 16 Ohm (stereo), 2 & 4 & 8 Ohm (mono)Risposta in frequenza: 9Hz-60kHz +/- 1dB , 8Hz-70Hz +/- 3dBTHD: < 0,1% @ 1W, < 2% @ Potenza nominaleRapporto S/N: 95 dBSensibilità d'ingresso: 1100mVPotenza assorbita: 470 wattValvole montate di serie: 6 - 12AU7 8 - EL34 Dimensioni (LxAxAxP) 38,6 x 20,3 x 40,4 cm Peso 31 Kg Finiture Disponibili (frontale) Silver o Nero
Caratteristiche Tecniche
Specifications | Model EVO 400-4 for EL34 / KT88 / KT120 / KT150 |
Power Ultra-Linear | 70 / 72 / 85 / 89 Watts Stereo per channel; 140 / 145 / 175 / 188 Watts Mono |
Power Triode | 38 / 43 / 45 / 51 Watts Stereo per channel; 82 / 88 / 94 / 109 Watts Mono |
Frequency Response | 9 Hz – 60 kHz +/- 1 dB 8 Hz – 70 kHz +/- 3 dB |
THD with AABB | < 0.1% @ 1W; less than 2% at rated power |
S/N Ratio | 95 dB– 105 dB A Weighted |
Input Impedance | 100 kOhm |
Input Sensitivity | 1100 mV for rated power at maximum volume |
Maximum Gain UL | 27 dB / 26.5 dB / 26.5 dB / 26 dB; 30 dB / 30 dB / 30 dB / 30 dB |
Maximum Gain TR | 25.5 dB / 24 dB / 24 dB / 24 dB; 28 dB / 27 dB / 27 dB / 27 dB |
Power Consumption | 470 Watts / 480 Watts / 540 Watts / 550 Watts |
Weight | Net weight: 68.2 lbs / 31 kg Shipping Weight: 79.2 lbs / 36 kg |
Dimensions | 15.9" x 15.2" x 8.1" / 405 x 385 x 205 mm (L x W x H) |
Shipping Dimensions | 22.7" x 18.4" x 12.4" / 577 x 468 x 315 mm (L x W x H) |

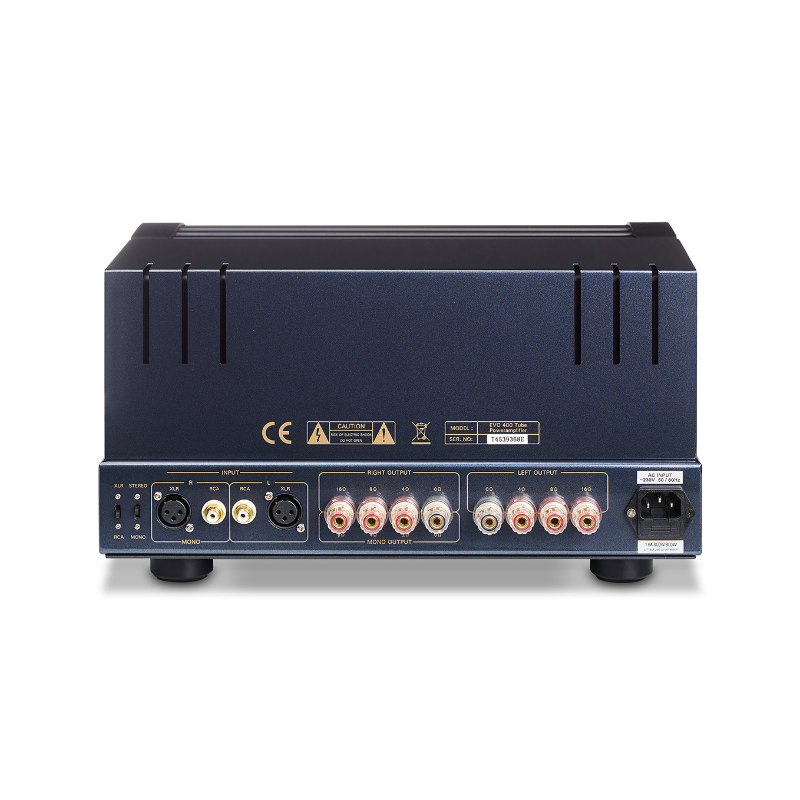

Inputs | 1 pair Stereo RCA & XLR, 1 piece Mono RCA & XLR |
Outputs | 4, 8 & 16 / 2, 4 & 8 Ohm Speaker Taps |
Tube Complement | 8 x EL34, 6 x 12AU7 |
Damping Coefficient | 7 KD (1 kHz) |
Remote Control | Slim |
