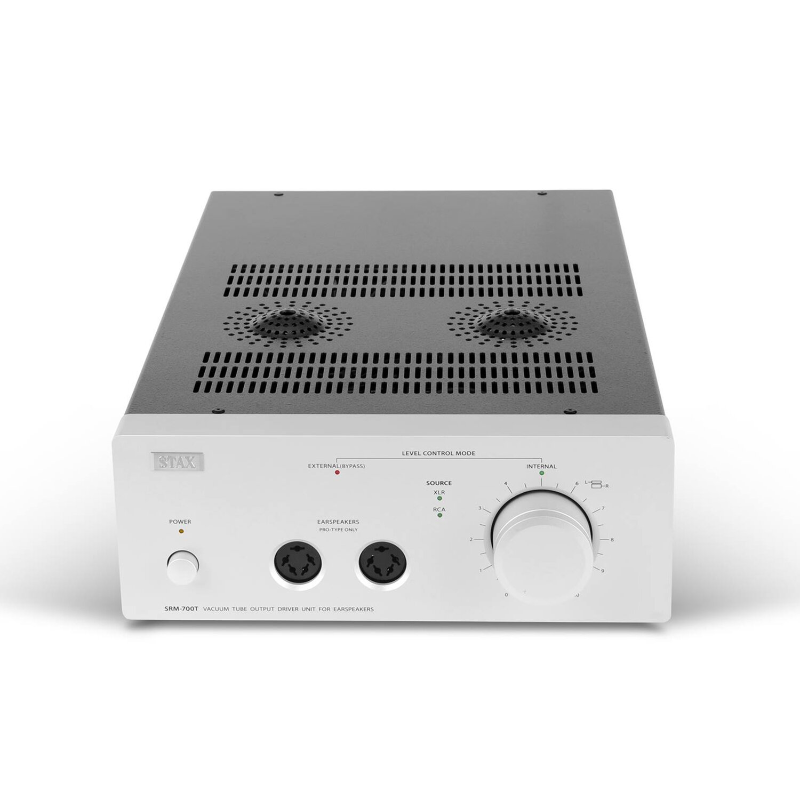

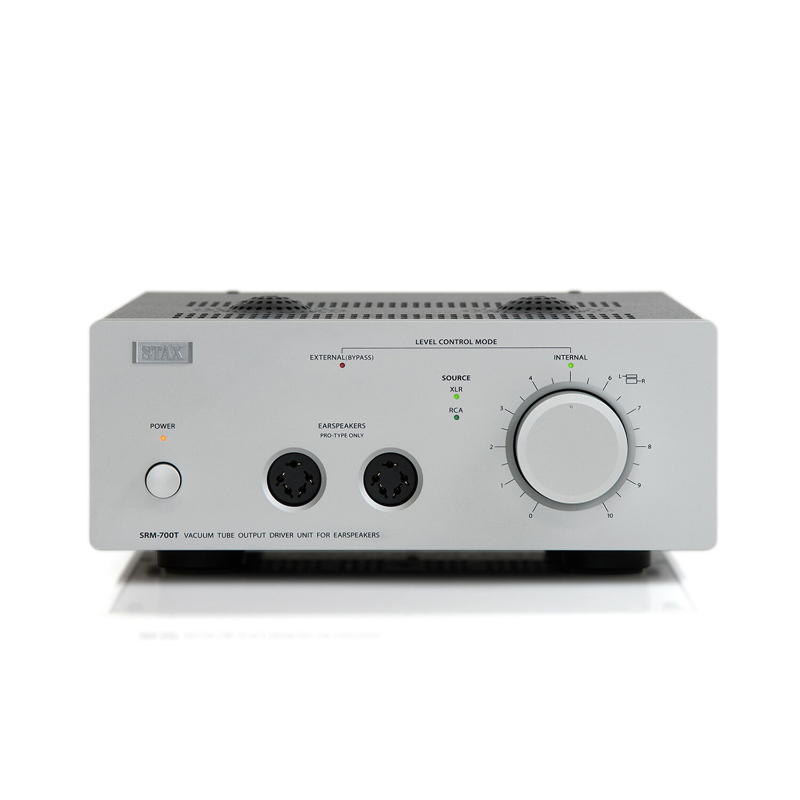

The newly designed SRM-700T is a hybrid electrostatic headphone driver. Inspired by the flagship model SRM-T8000, the 700T uses solid-state FET as a driver stage and vacuum tube as the output stage.
The first stage is a custom-made low-noise dual FET while the second stage is clear and high slew-rate vacuum tube 6SN7. The tube output offers warm and spacious music reproduction.
The newly developed large-sized aluminum insulator combined with new vibration-proof material and high frictional coefficient (grip power) have been employed.
Caratteristiche Tecniche
Caratteristica | Valore |
---|---|
Tipo | Unità di amplificazione DC a configurazione ibrida con ingresso FET e uscita a vuoto |
Tubo al Vuoto | 6SN7 x2 |
Risposta in Frequenza | DC - 100kHz (con un SR-009S) |
Guadagno | 60dB |
Distorsione Armonica | 0.01% o meno (1kHz/100Vrms output) |
Impedenza di Ingresso | 50kΩ (RCA), 50kΩ x 2 (XLR) |
Tensione di Uscita Massima | 340Vrms (1kHz) |
Tensione di Polarizzazione | PRO 580V |
Temperatura Operativa / Umidità | 0 a 35 gradi C / meno del 90% (non condensante) |
Terminali di Ingresso | RCA x 1, XLR x 1 |
Uscita | Terminale di uscita parallelo RCA |
Consumo Energetico | 54W |
Dimensioni | 240 (L) x 103 (A) x 393 (P) mm (massima parte sporgente inclusa) |
Peso | 5.7kg |
