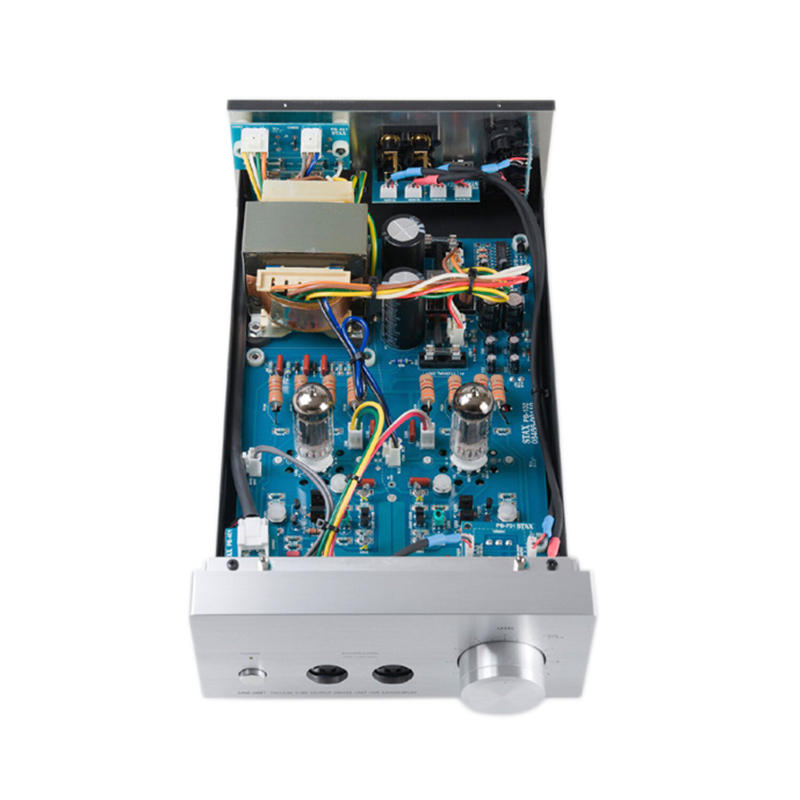

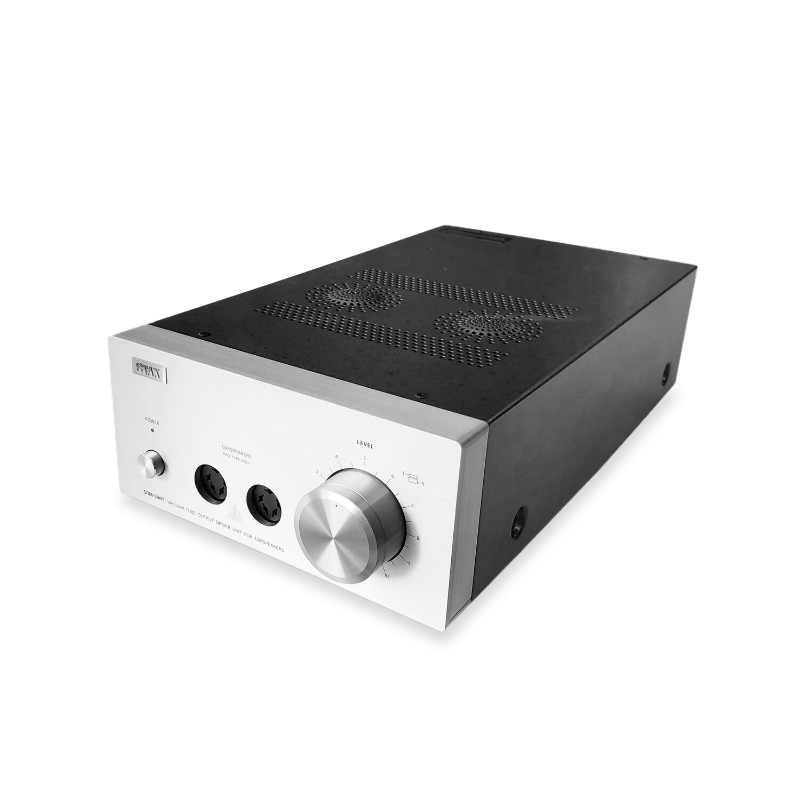

Stax introduces a new model SRM-500T to replace its successor of SRM-006tS. The SRM-500T utilizes a pair of 6FQ7/6CG7 vacuum tubes as the output, driven by custom-made low noise dual FET. Stax pride itself in offering a great value electrostatic driver at the best possible performance.
The newly designed power transformer enables power efficiency. As a result, it achieves an improved sound quality than the conventional vacuum tube output driver unit found in SRM-006tS.
Caratteristiche Tecniche
| Caratteristica | Valore |
|---|---|
| Tipo | Unità di amplificazione ibrida DC con ingresso FET e uscita a tubo al vuoto |
| Tubo al Vuoto | 6FQ7/6CG7 |
| Risposta in Frequenza | DC - 90kHz (con un SR-L500 MK2) |
| Guadagno | 60dB |
| Distorsione Armonica | 0,01% o meno (1kHz/100Vrms output) |
| Impedenza di Ingresso | 50kΩ (RCA), 50kΩ x 2 (XLR) |
| Tensione di Uscita Massima | 300Vrms (1kHz) |
| Tensione di Polarizzazione | DC 580V |
| Temperatura Operativa / Umidità | 0 a 35 gradi C / meno del 90% (non condensante) |

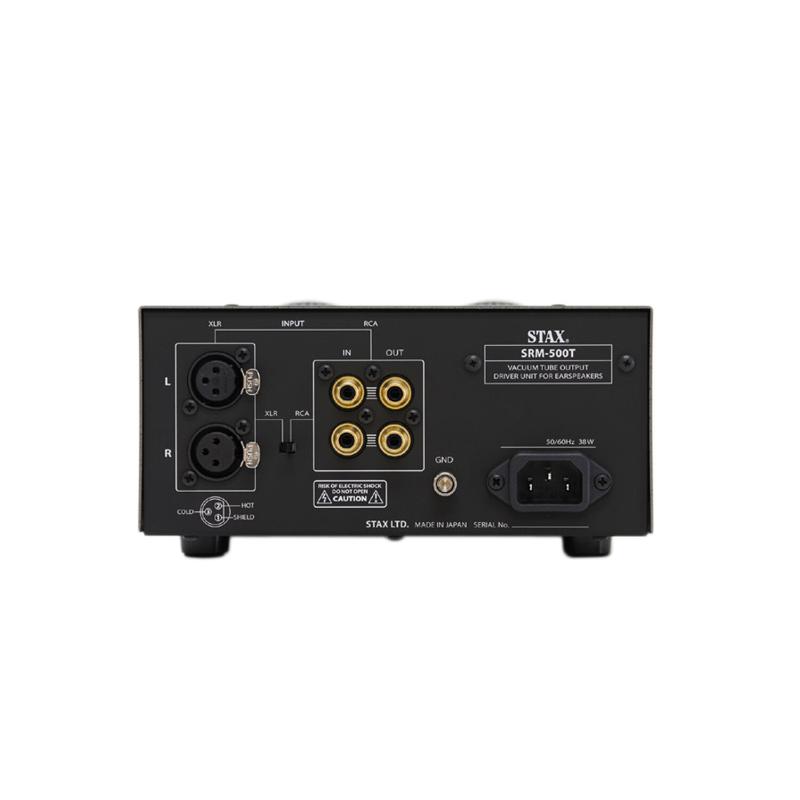

| Terminali di Ingresso | RCA x 1, XLR x 1 (ingresso a esclusione reciproca) |
| Uscita | Terminale di uscita parallelo RCA |
| Consumo Energetico | 38W |
| Dimensioni |
195 (L) x 102 (A) x 376 (P) mm (massima parte sporgente inclusa) |
| Peso | 3.4kg |
