PrimaLuna EVO 400 Preamplifier Caratteristiche Tecniche Nuovo Primaluna EVO 400 Preamplificatore Ingressi: 3x Stereo RCA + 2x Stereo bilanciati XLR + Home Theatre ByPass Uscite: 2 x Stereo RCA + 2x Stereo bilanciati XLRUscita tape out: RCA stereoGuadagno: 10 dBRisposta in frequenza: 18Hz-38kHz +/- 1dB , 12Hz-75Hz +/- 3dB THD: < 0,5% @ 2VRapporto S/N: 93 dB Sensibilità d'ingresso: 650 mVImpedenza d'ingresso: 220 k OhmImpedenza d'uscita: 256 Ohm Potenza assorbita: 61 wattValvole montate di serie: 6 - 12AU7 2 - 5AR4 Dimensioni (LxAxAxP) 38,6 x 20,6 x 40,4 cm Peso 24 Kg Telecomando Finiture Disponibili (frontale) Silver Nero
Caratteristiche Tecniche
Specifications | Model EVO 400-3 |
Output | 2V / CH |
Frequency Response | 18 Hz – 38 kHz +/- 1 dB 12 Hz – 75 kHz +/- 3 dB |
THD | < 0.5% @ 2V |
S/N Ratio | 93 dB (98 dB A weighted) |
Input Impedance | 220 kOhm |
Input Sensitivity | 650 mV for rated output at maximum volume |
Gain | 9.7 dB |
Power Consumption | 61 Watts |
Weight | Net weight: 52.8 lbs / 24 kg Shipping Weight: 63.8 lbs / 29 kg |
Dimensions | 15.9" x 15.2" x 8.1" / 405 x 385 x 205 mm (L x W x H) |
Shipping Dimensions | 22.7" x 18.4" x 12.4" / 577 x 468 x 315 mm (L x W x H) |

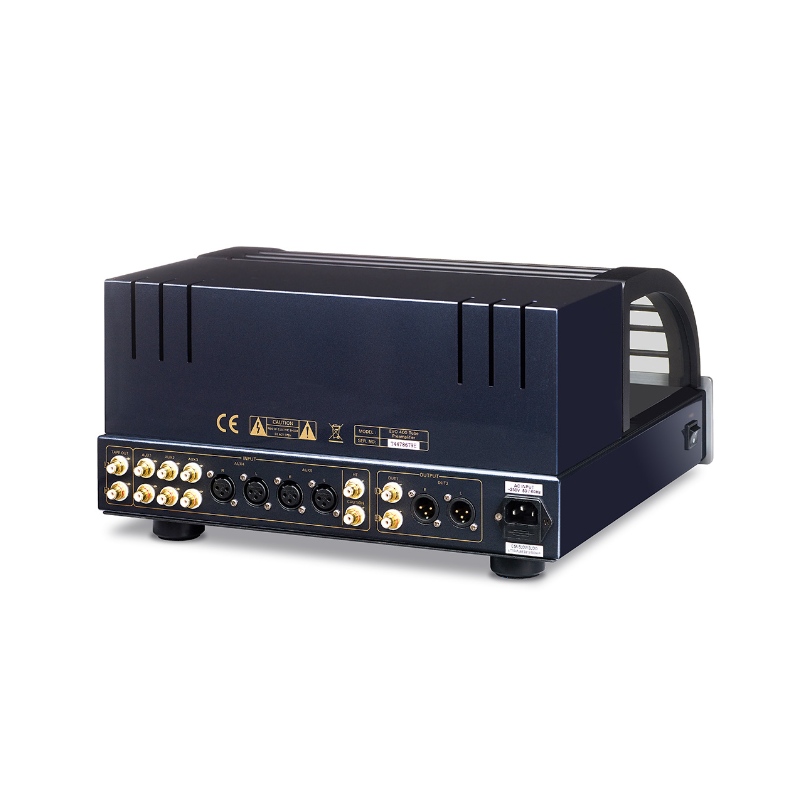

Inputs | 3 pairs Stereo RCA, 2 pairs Stereo XLR, 1 pair Home Theater Input |
Outputs | 1 pair RCA Tape, 1 pair Stereo RCA, 1 pair Stereo XLR |
Tube Complement | 2 x 5AR4, 6 x 12AU7 |
Output Impedance | 256 Ohm |
Remote Control | Full |
