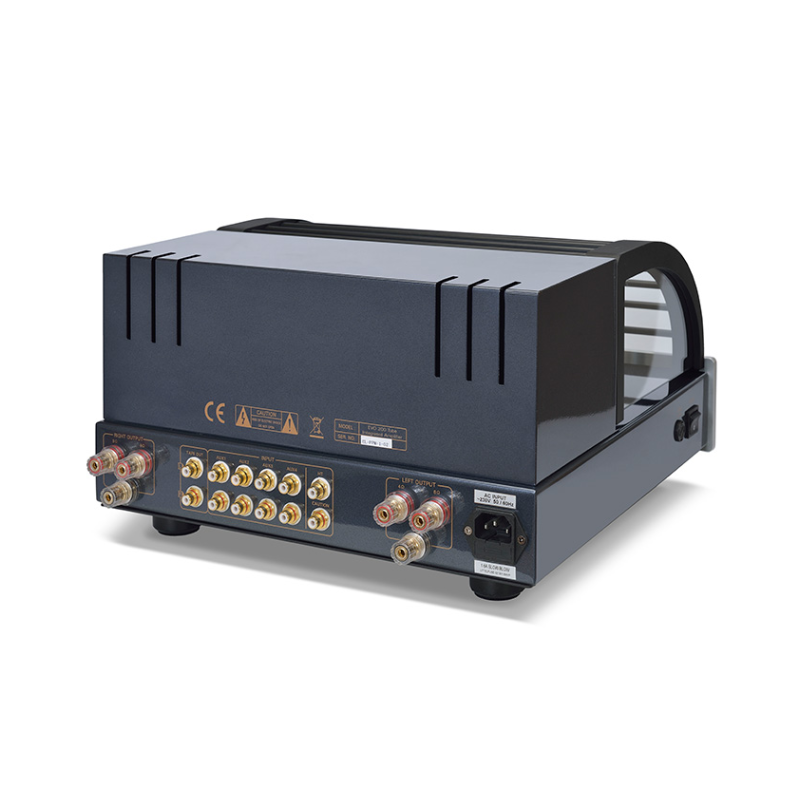

PrimaLuna EVO 200 Integrated Caratteristiche Tecniche Nuovo amplificatore Primaluna EVO 200 Integrato Potenza: 44 watt x 2 (EL34) (8 Ohm, 1% THD) MIngressi: 4x Stereo RCA + Home Theatre ByPass Uscite: 4 & 8 Ohm MUscita tape out: RCA stereo Uscita cuffia 1/4" Risposta in frequenza: 10Hz-65kHz +/- 1dB , 9Hz-95Hz +/- 3dB THD: < 0,2% @ 1W, < 2% @ Potenza nominale Rapporto S/N: 86 dB MSensibilità d'ingresso: 275 (EL34) Potenza assorbita: 280 watt (EL34) Valvole montate di serie: 4 - 12AU7 4 - EL34 Dimensioni (LxAxAxP) 36,6 x 20,6 x 40,4 cm Peso 24 Kg Telecomando MFiniture Disponibili (frontale) Silver Nero
Caratteristiche Tecniche
Specifications | Model EVO 200-1 for EL34 / KT88 |
Power Ultra-Linear | 44 / 45 Watts per channel |
Frequency Response | 10 Hz – 65 kHz +/- 1 dB 9 Hz – 95 kHz +/- 3 dB |
THD with AABB | < 0.2% @ 1W; < 2% @ Rated Power |
S/N Ratio | 86 dB / 87 dB – 95 / 96 dB A Weighted |
Input Impedance | 100 kOhm |
Input Sensitivity | 275 / 285 mV for rated power at maximum volume |
Maximum Gain | 35 dB / 35.2 dB (EL34 / KT88) |
Power Consumption | 280 Watts / 290 Watts |
Weight | Net weight: 52.8 lbs / 24 kg Shipping Weight: 61.6 lbs / 28 kg |
Dimensions | 15.9" x 14.4" x 8.1" / 405 x 365 x 205 mm (L x W x H) |
Shipping dimensions | 22.7" x 18.4" x 12.4" / 577 x 468 x 315 mm (L x W x H |
Inputs | 4 pairs Stereo RCA, 1 pair Home Theater Input |
Outputs | 4 & 8 Ohm Speaker Taps, Tape, Headphone |

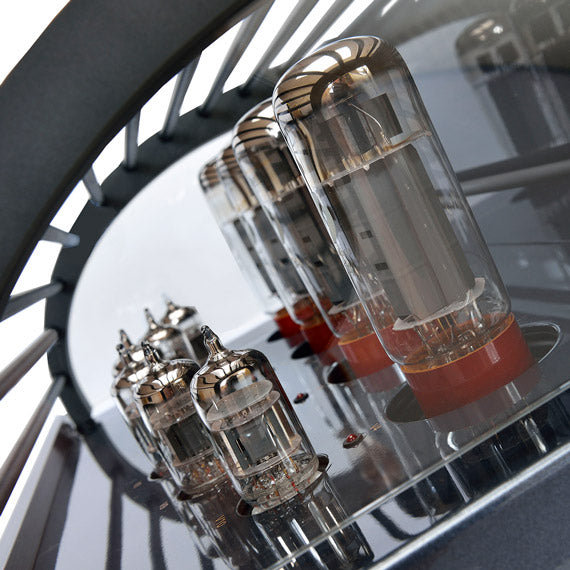

Standard Tube Complement | 4 x EL34, 4 x 12AU7 |
Damping Coefficient | 4 KD (1 kHz) |
Remote Control | Slim |
