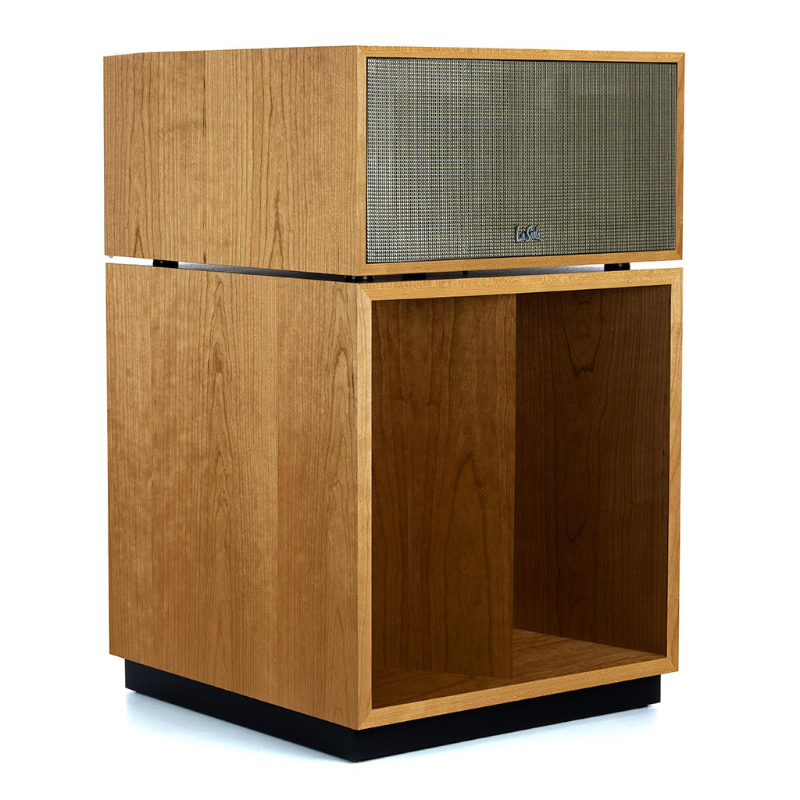

Diffusore da pavimento a 3 vie interamente caricato a tromba, serie Heritage - costruito artigianalmente a Hope, Arkansas, USA - tweeter K-771 da 1 pollice (25 mm) con magnete in neodimio, diaframma in poliimmide e caricamento a tromba con sistema proprietario Tractrix Horn 90°x 40° - midrange K-55-X da 2 pollici (50 mm) con diaframma in resine fenoliche e caricamento a tromba esponenziale - woofer K-33-E da 15 pollici (380 mm) con membrana in fibra composita e sistema di caricamento a tromba ripiegata.
Caratteristiche Tecniche
| Specification | Value |
|---|---|
| Frequency Response | 34Hz - 20kHz +/- 4dB |
| Sensitivity | 102dB @ 2.83V / 1m |
| Power Handling | 100W / 400W |
| Maximum SPL | 119dB Continuous |
| Nominal Impedance | 8 ohms Compatible |
| Crossover Frequency | HF: 5000Hz |
| MF: 700Hz | |
| High Frequency Driver | K-107-TI 1” (2.54cm) Titanium diaphragm compression driver |
| Midrange Driver | K-702 1.75” (4.45cm) Polyimide diaphragm compression driver |
| Low Frequency Driver | K-33-E 15” (38.1cm) Fiber-composite cone woofer |
| Enclosure Material | MDF with fine veneers |

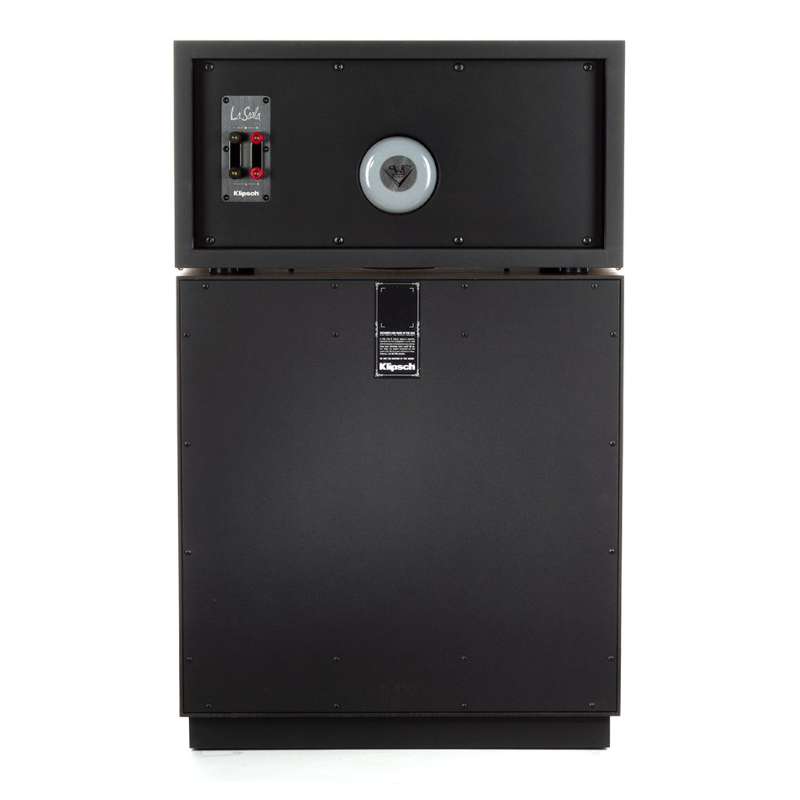

| Inputs | Dual binding posts / bi-wire / bi-amp |
| Height | 38” (96.52cm) |
| Width | 25.3” (64.3cm) |
| Depth | 15.5” (39.4cm) |
| Weight | 95.76 lbs (43.43kg) |

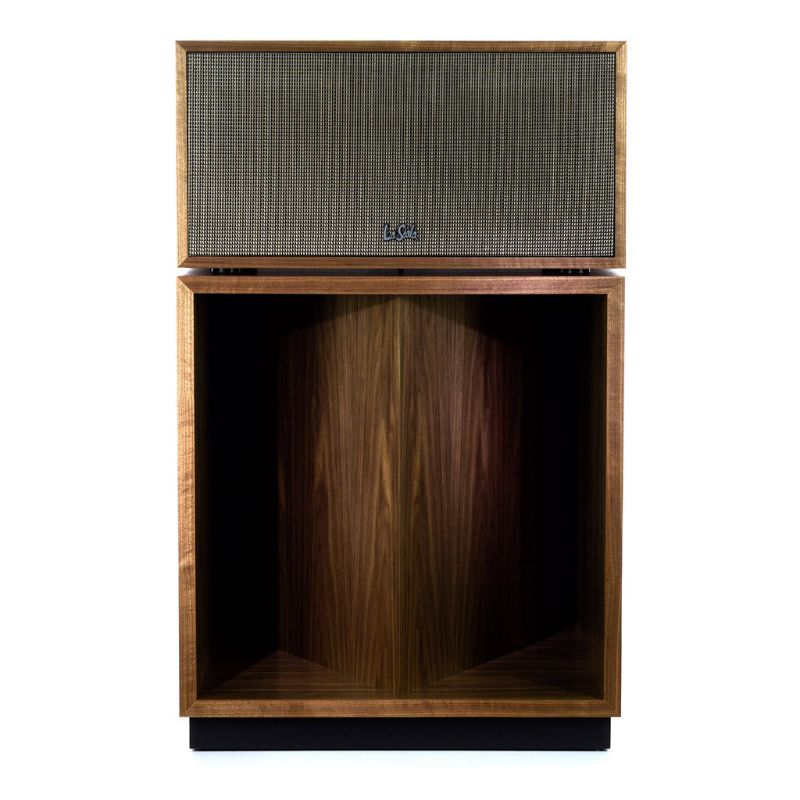

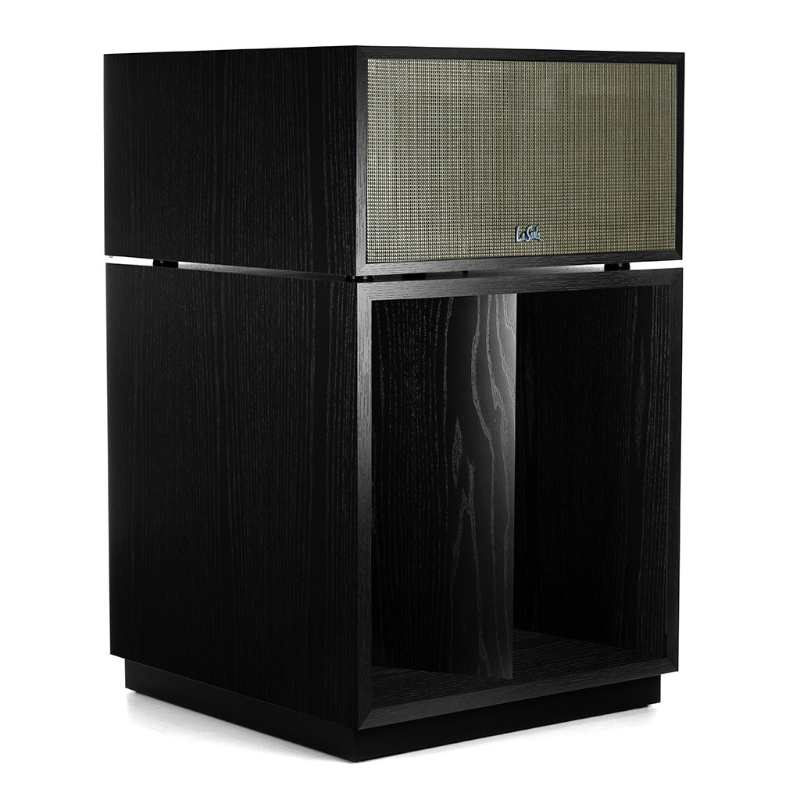

| Finish | Satin Black Ash, American Walnut, Natural Cherry |
