Amplificatore integrato con 140 W di potenza per canale
Con la potenza del circuito singolo push-pull ad altissima corrente e l'elaborazione Advanced AL32 Processing Plus, Denon PMA-1700NE conserva i dettagli della registrazione originale. Ascolta la tua musica preferita in digitale tramite i tre ingressi digitali o un ingresso USB-B posteriore, oppure passa all'analogico con l'equalizzatore fono MM o MC e la modalità analogica dedicata.
Caratteristiche Tecniche
Dimensioni (W x H x D mm) | 434 x 135 x 410 |
Peso | 17.6 kg |
Rated Output Power | 70W + 70W (8ohm,20Hz-20kHz,THD0.07%) |
140W + 140W (4ohm, 1kHz, THD0.7%) | |
Input Sensitivity: CD/LINE/RECORDER | 125 mV / 19 kohm |
Total Harmonic distortion | 0.01% (Rated output: -3 dB), 8 ohm/ohms, 1 kHz |
Input Sensitivity: Phono input | MM: 2.5 mV / 47 kohm |
MC: 200 μV / 100 ohm | |
Input Sensitivity: Power Amp input | 0.85V / 47kohm (EXT. PRE) |
Signal to Noise Ratio | PHONO (MM): (89dB) |
PHONO (MC): (74dB) | |
CD: (107dB) | |
Phono Input | Yes (MM/MC) |
Headphone Output | 1 (Turn off the speaker when inserting headphone) |

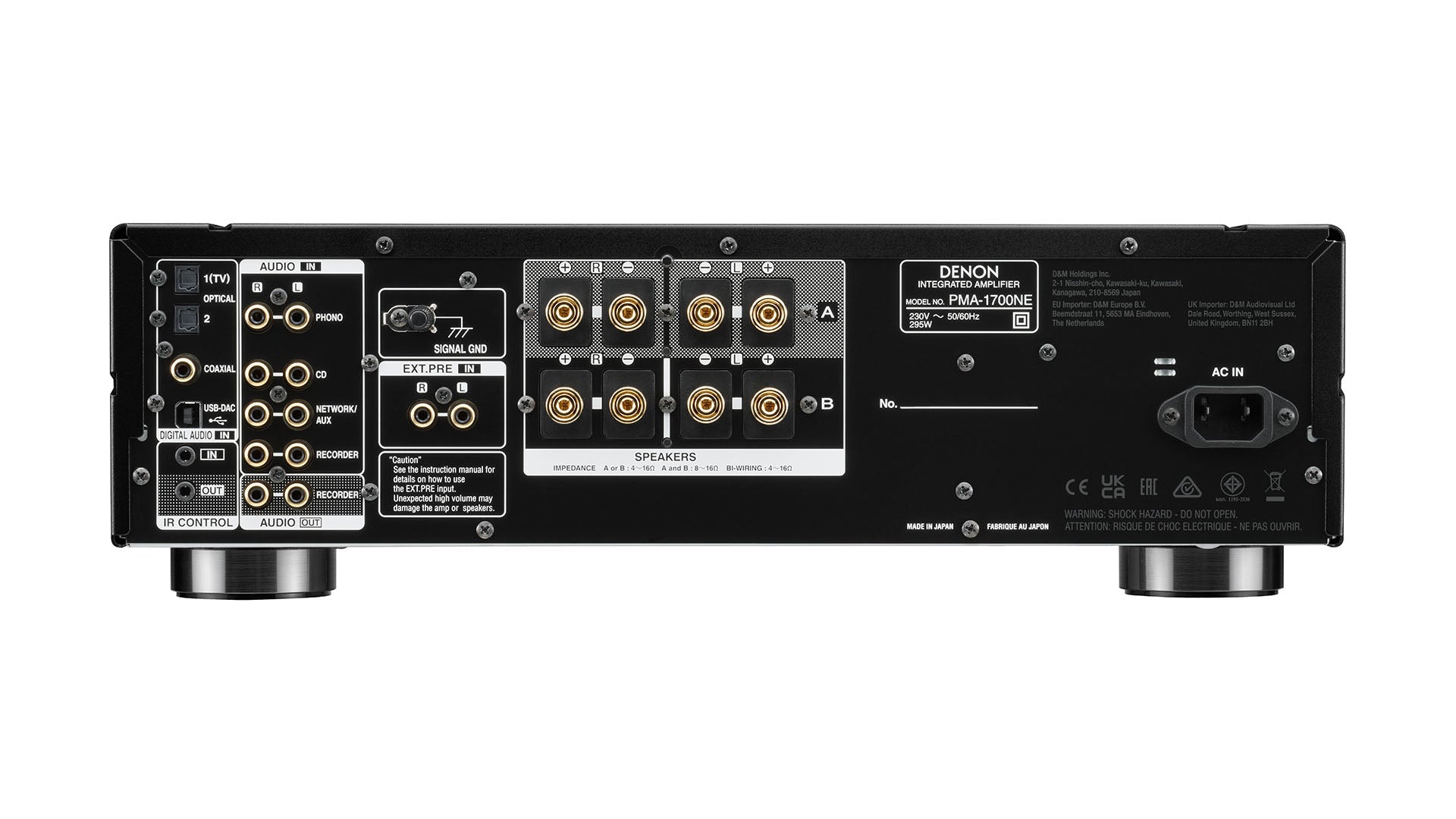

Analog Input (include Phono) / REC Out (RCA) | 4/1 (PHONO/CD/NETWORK, AUX/RECORDER) |
Coaxial input / output (Maximum Support) | 1/0 (192kHz/24bit) |
Optical input / output (Maximum Support) | 2/0 (192kHz/24bit) |
Speaker Terminal | Gold Plated |
USB B (USB DAC) | 1 (Rear) |
PCM Sample Rate | ~384kHz/32bit |
DSD Audio Streaming (DoP) | ~11.2MHz |
