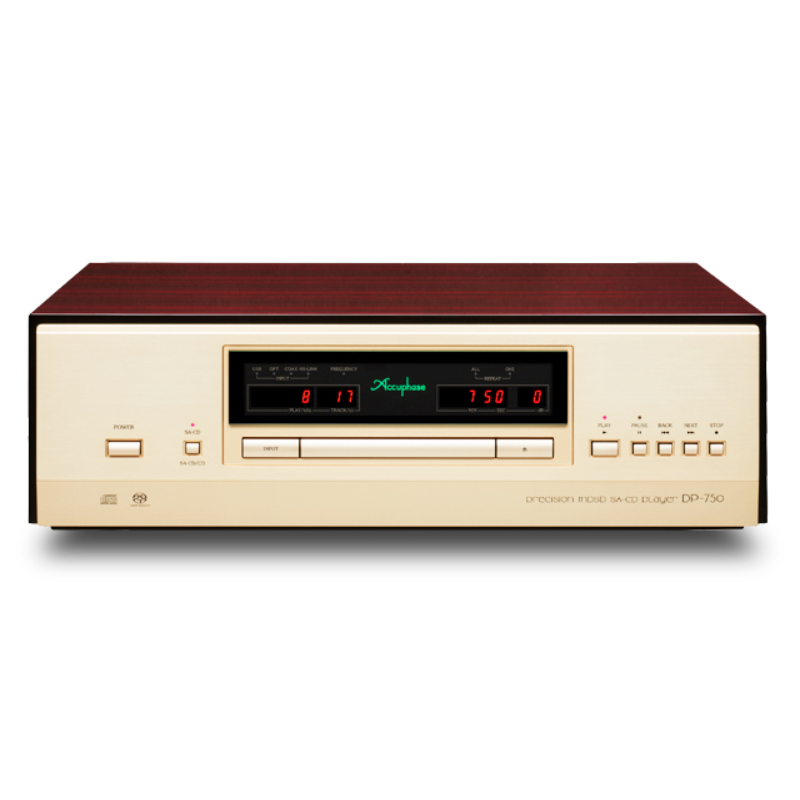

Il meccanismo di caricamento del disco silenzioso e ultra fluido combinato con un'unità SA-CD/CD ad alta rigidità e precisione estrae l'intero ambito delle informazioni registrate. L'innovativo convertitore D/A MDSD (Multiple Double Speed DSD) comprende otto dispositivi MDS++ pilotati in parallelo e un filtro a media mobile per ricreare un segnale analogico di straordinaria purezza. La versatile gamma di uscite di trasporto e ingressi digitali consente il collegamento di un equalizzatore vocale o di altre apparecchiature nel dominio digitale. Sfruttando la tecnologia più recente in un ensemble magistrale, il DP-750 va dritto al cuore della musica.
Caratteristiche Tecniche
| Specification | Value |
|---|---|
| Sampling Frequencies | |
| - D/A Converter (CD playback and external input - PCM) | 8 MDS++ type |
| - D/A Converter (SA-CD playback and external input - DSD) | 8 MDSD type |
| Frequency Response | 0.5 to 50,000 Hz (+0, -3.0 dB) |
| THD + Noise | 0.0005% (20 to 20,000 Hz) |
| Signal-to-Noise Ratio | 120 dB |
| Dynamic Range | 117 dB |
| Channel Separation | 118 dB (20 to 20,000 Hz) |
| Output Voltage and Impedance | |
| - BALANCED | 2.5 V, 50 ohms, balanced XLR type |
| - LINE | 2.5 V, 50 ohms, RCA phono jack |
| Output Level Control | 0 dB to -80 dB in 1-dB steps (digital) |
| Compatible Disc Formats |
2-channel Super Audio CD, CD, DSD disc, DVD-R/- RW/+R/+RW (DSF file format), CD-R/-RW, DVD-R/- RW/+R/+RW (Supported formats: WAV, FLAC, DSF, DSDIFF) |
| Data Read Principle | Non-contact optical pickup |
| Laser Diode Wavelength | SA-CD: 655 nm, CD: 790 nm |
| Transport Outputs | |
| - HS-LINK | Proprietary standard, Dedicated HS-LINK cable |
| - OPTICAL | JEITA CP-1212 compliant, JEITA standard optical fiber cable |
| - COAXIAL | IEC 60958 compliant, 75-ohm coaxial digital cable |
| Digital Inputs | |
| - HS-LINK | Proprietary standard, Dedicated HS-LINK cable |
| - USB |
USB 2.0 Hi-Speed (480 Mbps) compliant, USB 2.0 cable with Type B connector |
| - OPTICAL |
JEITA CP-1212 compliant, JEITA standard optical fiber cable |
| - COAXIAL | IEC 60958 compliant, 75-ohm coaxial digital cable |
| Input Format (HS-LINK Ver. 1) |
DSD: 2.8224 MHz (1 bit), PCM: 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (16 to 24 bits) |
| Input Format (HS-LINK Ver. 2) |
DSD: 2.8224 / 5.6448 MHz (1 bit), PCM: 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 / 352.8 / 384 kHz (16 to 32 bits) |
| Input Format (USB) |
DSD: 2.8224 / 5.6448 / 11.2896 MHz (ASIO only), PCM: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 / 352.8 / 384 kHz (32 / 44.1 / 48 / 88.2 / 96 kHz for optical and coaxial) |
| Input Format (OPTICAL) | PCM: 32 / 44.1 / 48 / 88.2 / 96 kHz (16 to 24 bits) |
| Input Format (COAXIAL) | PCM: 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (16 to 24 bits) |
| Power Requirements | 120 V, 220 V, 230 V AC (voltage as indicated on rear panel), 50/60 Hz |
| Power Consumption | 26 W |
| Maximum Dimensions | Width: 477 mm (18.8"), Height: 156 mm (6.1"), Depth: 394 mm (15.5") |
| Mass | Net: 28.2 kg (62.2 lbs), In shipping carton: 35.0 kg (77.2 lbs) |
