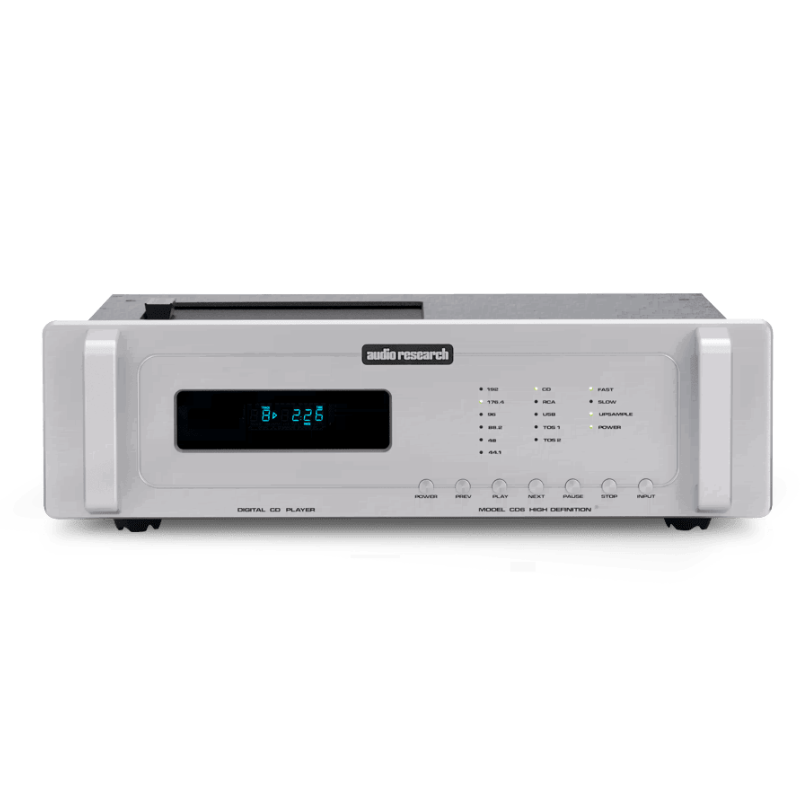

Il CD6 di Audio Research è una combinazione di un lettore CD ad altissima risoluzione e un convertitore da digitale ad analogico, il tutto in un unico chassis compatto. È perfetto per la riproduzione musicale moderna e ottimizzerà quasi tutti i formati digitali con risultati spettacolari.
Caratteristiche Tecniche
| Specification | Value |
|---|---|
| Frequency Response |
+0-3dB, 3Hz to 96kHz (rated output), 0.15dB 20Hz to 20kHz (Balanced, 200k ohms load)@ 192kHz sample rate |
| Distortion | THD+N Less than .004% at 2V RMS BAL output |
| Signal-Noise-Ratio | >110dB |
| Dynamic Range (AES17) | 111dB |
| IMD (SMPTE) | 0.003% |
| RMS Noise level | -95dBV (20-20kHz) |
| Gain | 16.5dB Balanced, 8.3dB SE |
| Input Impedance |
Digital: 75 ohms RCA, 110 ohms AES/EBU, OPT 660nm TOSLink fiber 44.1 to 96kHz |
| Output Impedance |
500 ohms Balanced, 250 ohms SE Main (2), 20K ohms minimum load and 2000pF maximum capacitance |
| Output Polarity | Non-inverting |
| Max. Output | At 0.0dB input, 5V RMS into 200K ohm balanced load |
| Digital Sample Rates | 24 bits @ 44.1kHz to 192kHz, SPDIF, AES/EBU and USB 2.0 HS |
| Upsampling |
Select upsampling or Native mode; CD, RCA, AES/EBU, TOS upsample to 176.4 or 192kHz. USB upsamples to 88.2 or 96kHz |
| Master Oscillator |
22.579mHz ±20Hz for 44.1, 88.2 & 176.4kHz. 24.576mHz ±20Hz for 48, 96 & 192kHz |
| Intrinsic Jitter | <10ps |
| Outputs Digital |
XLR Balanced AES/EBU 110-ohms 4V P-P, BNC coax SPDIF 75- ohms 0.7V P-P |
| Channel Separation | 103dB @ 1kHz |
| Power Requirements |
105-125VAC 60Hz (210-250VAC 50/60Hz) 23 watts maximum. Sleep mode 0.5 watts maximum |
| Dimensions |
Width: 19" (48 cm), Height: 5.25" (13.4 cm), Depth: 12.25" (31.1 cm), Handles extend 1.50" (3.8 cm) forward of the front panel |
| Weight | 25.9 lbs (11.8kg) |
